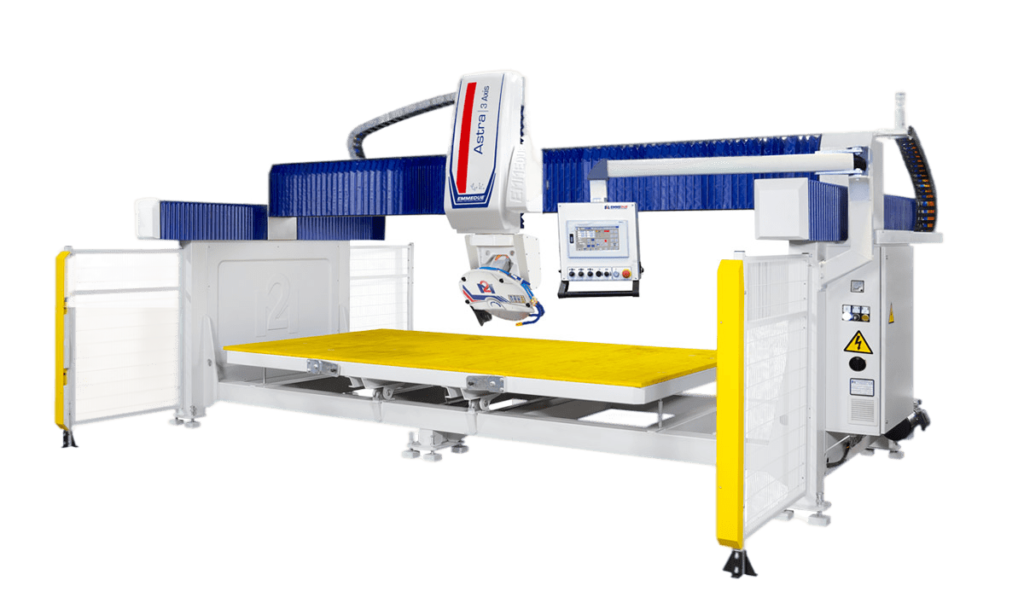

ASTRA 3 Axis
ASTRA 3 Axis
THE MOST COMPACT AND DYNAMIC BRIDGE SAW IN ITS CATEGORY.
Blade
diameter:
19,68 Inch
Power:
18 HP
Automatic bridge saw versatile, precise, reliable and easy to use.
Details
Bridge saw machine structure and work table made of hot galvanized dipped electro-welded steel that guarantees high water resistance. X / Y / Z axis movements on slideways with ball-bearing guide blocks protected by bellows.
The blade motor has Hp18 – kW 13.2 power, can reach a maximum speed of 3000 Rpm with inverter, cutting thicknesses up to 145 mm. with disc Ø 500 mm. (200mm. with disc Ø 625 mm. Optional)
Manual rotation head in three positions, 0° - 90° - 180°, manual tilting head from 0° to 90° with handweel.
Panel control touch screen 10” with easy to use interface.
The optional tilting work table with hydraulic pump, promotes slab loading, speeding up the production process.
Astra 3 is ideal for indoor and outdoor designs such as kitchen counters, bathroom counters, capitals, tables, stairs, floors and funerary art.
Gallery details
Manual rotating head 0° – 90° – 180°
Manual tilting blade 0° ÷ 90° by hand weel
Hydraulic tilting work table
Hand remote control
