Home Machine 3 Axis




  • Blade diameter: 19,685 Inch
  • Power: 18 HP

Suitable for meeting the needs of even small and medium-sized laboratories.

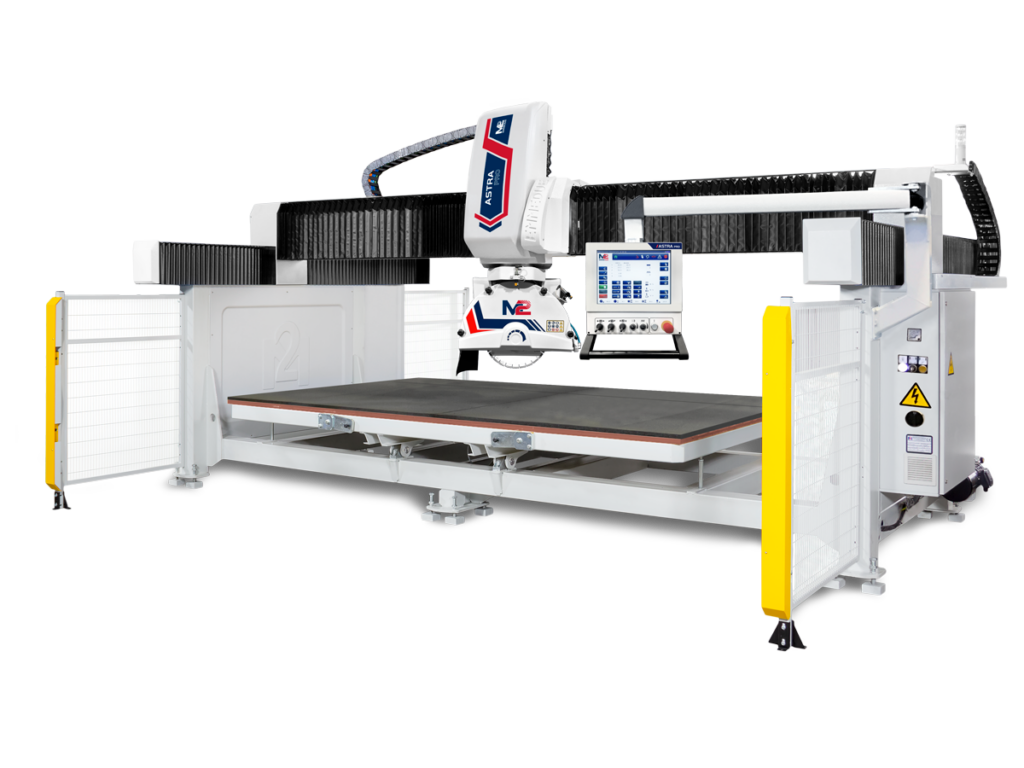

Astra Pro is the most revolutionary one-piece milling machine in its class.
5 automatic axes, dedicated software on new 15" touch-screen swivel panel, color display and interactive macros, allowing programming of all machining operations on board the machine. Developed following customers' needs, it is the highest performing machine in its category.

The machine structure and worktable are made of electro-welded steel with hot-dip galvanizing treatment, which guarantees high resistance to external agents.

The movement of the X / Y / Z axes (interpolated axes) is achieved by transmission by means of linear, hardened and ground guideways with corresponding recirculating ball bearings, all protected by bellows. C and A positioning axes.

Fixed work table with wood surface water resistent measures 3.600 x 2.000 mm (141.73“ x 78.74”).

The tilting version with hydraulic drive (opt.) facilitates the loading of slabs, speeding up the production process.

The automatic lubrication system (opt.) promotes proper maintenance of components.
The blade motor has a power of 18 HP, max speed of 3000 RPM regulated with inverter. The 500mm-diameter blade allows cutting thicknesses up to 145 mm. (200mm with 625mm disc opt.).

Automatic rotation of the head 0° ÷ 370° and automatic tilting of the disc 0° and 45° allow multiple machining operations to be carried out easily and intuitively.

Astra PRO is ideal for medium and small companies to make Interior and Exterior Designs such as kitchen tops, bathroom tops, capitals, tables, stairs, flooring.
