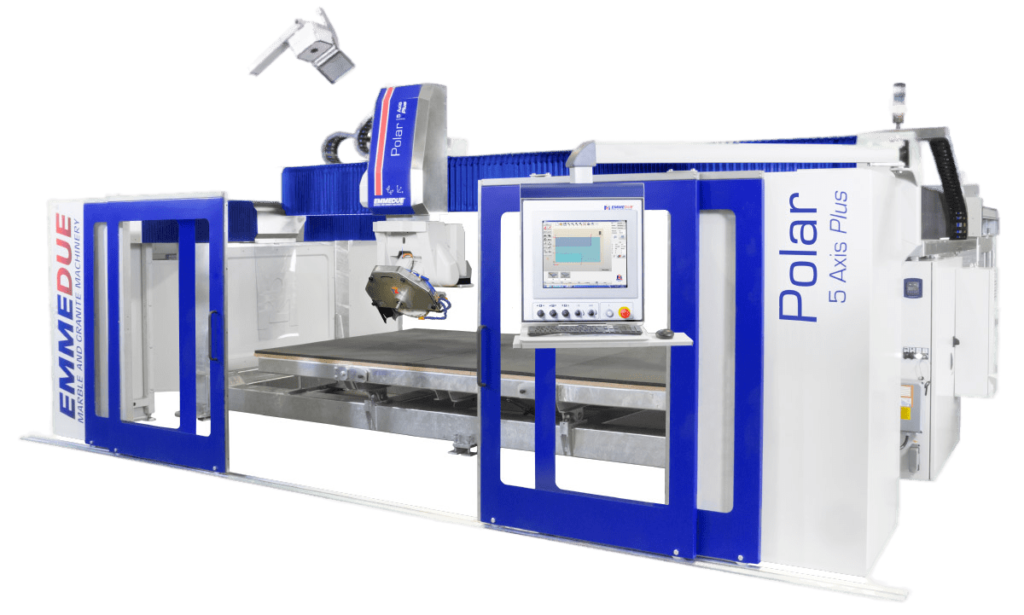

New revolutionary concept of bridge saw 5 axis
Machine frame and work table made of hot galvanized dipped electro-welded steel that guarantees high water resistance.
Digital brushless type axis drives, coupled with high precision gear motors, linear guides with recirculating balls protected by bellows, allow for extremely precise cuts.
The blade motor has 24Hp - 17.6 kW power, can reach a maximum speed of 4300 RPM (opt. Tools 6000 RPM) can cut thicknesses up to 250mm. disc with maximum Ø 725 mm.
The automatic rotation of the head 370°, the automatic tilting head from 0 ° to 90 °, a Multi-touch 17” display easy to use, allows to perform orthogonal, sideways, elliptic, circular, tilted, straight, concave, arched convex profiles, solid two and three-dimensional solid excava- tions are possible exploiting axis interpolation.
The Z axis is driven by a balls circulation screw support by a compensation pneumatic piston that facilitates axis rise, reducing the strain to a minimum, guaranteeing the maximum reliability even over time.
The Polar 5 Axis is ideal for indoor and outdoor designs such as kitchen countertop, vanity top, capitals, tables, sinks, stairs, floors and Funeral art.
Windows based system, integrated with machine control board, Multi-Touch 17” control panel with innovative and interactive M2 Easy Cad interface, guarantee easy, simple and intuitive control operations.
Machine electronics are controlled by brand name products known throughout the world that guarantee easy replacement in the event of fault.
LAN connection and USB port to load files from external devices.
Cad Cam software manages and optimizes all the phases of the process: from the design and/or import of parts, the definition of machi- ning strategies, to the estimated timing and control of collisions with 3D simulation, through to the provision of parts and underparts on the workbench
